Inspection Capabilities

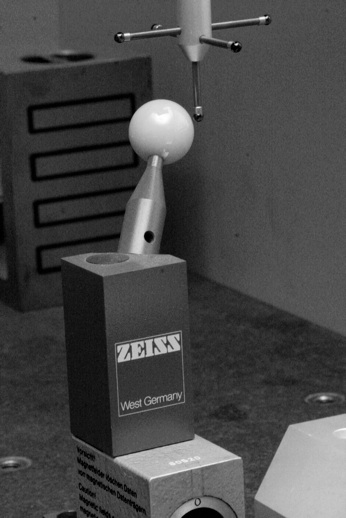

Zeiss MC550 CMM

    Capable of sub-micron measurements.



Taylor Hobson Talyrond TR252

Sub-micron roundness, cylindricity , vertical & horizontal straightness, concentricity, runout, & total runout.



Federal Surfanalyzer 5000

    Surface finish and profile measurements.



Sylvac D100 system.

    Sub-micron system for drop gages and comparator type gaging.



PZO toolmakers microscope.



Mitutoyo Cadilac gage.



Various other pieces of inspection equipment you would expect to see in a high precision facility.







Machining Capabilities

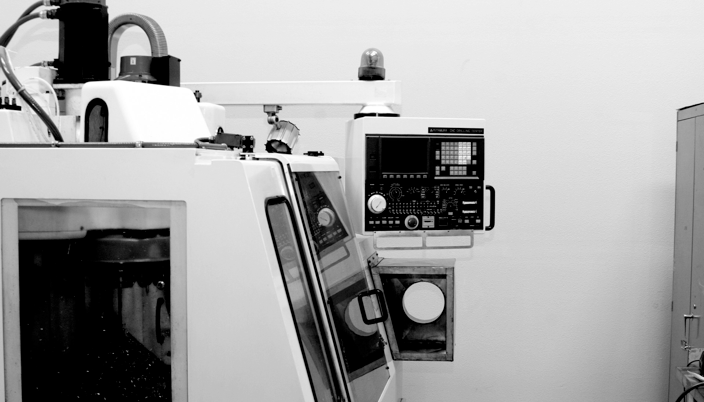

    1. CNC Milling:

    2.

    3. Kitamura Mycenter One

    4.     3 axis CNC Milling Machine

    5.     13000 RPM Spindle

    6.

    7. Dyna Mechtronics  DM2900 Mini Mill

    8.     3 axis CNC  Milling Machine

    9.     7000 RPM Spindle

    10.

    11. CNC Turning:

    12.

    13. Hardinge Conquest GTSP

    14.     2.5 axis CNC Turning Machine

    15.     Super precision 0.1μm input resolution

    16.     C axis indexing

    17.     Live tool capable

    18.

    19. Techno Wasino A8

    20.

    21. Wire EDM:

    22.

    23. Elox-Fanuc Series O Wire Cut

    24.

    25.     CNC Wire EDM

    26.     Taper Cut Capability

    27.

    28. Micro ECM:

    29.

    30. Capability to produce micro ECM features, such as grooves for hydro-dynamic spindle bearings, at the micron level in various materials.

    31. Develop micro ECM processes for large scale production.

cnc machining and process development

electrochemical machining services

About Sigmatec



We have over 25 years of experience in the fields of ultra-precision machining and grinding.



D

E

P

E

N

D

A

B

L

E



Sigmatec Precision specializes in the fields of electrochemical machining as well as the manufacturing of fluid dynamic bearings. Sigmatec Precision has  unparalleled capabilities and is ready to fulfill your machining needs.
